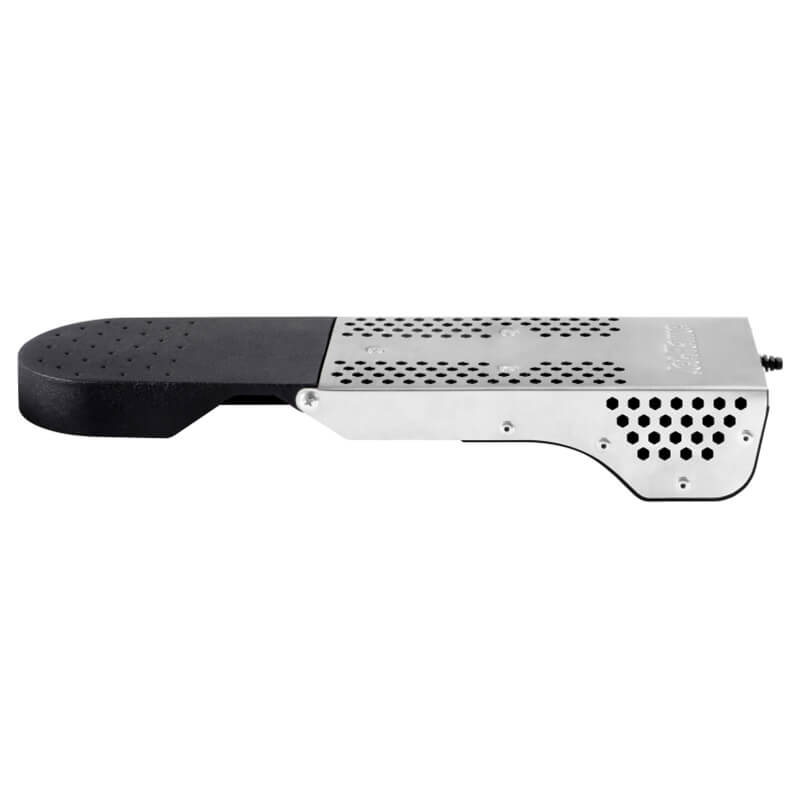

Jet-flame, Turn your fire into a Jet.

The Jet-Flame made of cast iron and stainless steel, is a new type of wood cookstove accessory that improves combustion. You can use it to improve an open fire, traditional stove or an SSM wood-burning rocket stove for maximum performance.

  • Working Principle: A fan blows powerful jets of air underneath the fire, through the charcoal, and into the flames creating intense heat and very little smoke.
  • You can choose a power bank, solar panel, or other source to drive the Jet-flame.

Materials

Made of Cast iron and stainless steel.

Spec & Warranty

Air chamber Cast iron
Wood Support Stainless steel
USB Type Type A
Fan info 12V, 0.3A, and 3.6W,9000RPM.
Size 42*12*7cm
Weight 1.8kgs
Warranty 1 years
Lifespan 3-5years
Size 42*12*7cm
Weight 1.8kgs

Performance

Saves up to 60% of fuel, Reduce up to 80% of smoke.

High-Power Hot Start ISO tiers
Stove type Thermal Efficiency % CO g/MJd PM mg/MJd
Open fire Tier1, >10% Tier2, ≤11.5 Tier1, ≤1031
Stove+Skirt Tier3, >30% Tier3, ≤7.2 Tier2, ≤481
Open fire+Jet-Flame Tier3, >30% Tier3, ≤7.2 Tier3, ≤218
Open Fire+Jet-Flame+Skirt Tier4, >40% Tier4, ≤4.4 Tier3, ≤218
Stove+Jet-Flame+Skirt Tier5, >50% Tier5, ≤3.0 Tier4, ≤62
